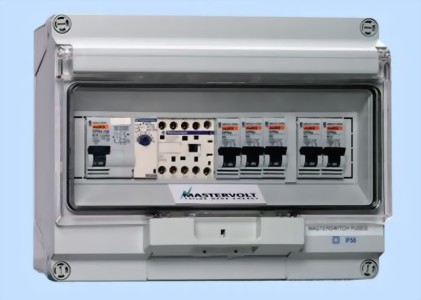

Mastervolt Masterswitch Fuses
Mastervolt Masterswitch Fuses. Adviesprijs 5KW €679
Inclusief B.T.W. (21%) Verzendkosten
Mastervolt Masterswitch Fuses. Adviesprijs 5KW €679
INPUT | |
Nominal input voltage | 230V (50/60 Hz) |
Input voltage range | 200-250V AC |
Number of inputs | 2 |
Number of outputs | 2 |
Dimensions (H x W x D) | 200 x 255 x 115 mm |
Weight | 2.1 kg |
VERSION | |
With automatic circuit breakers | yes |
Connection for Mastervolt remote control | no |
LED indication on enclosure | no |
Nominal input current generator | 16A |
Nominal input current shore power | 16A |
Nominal input current inverter | 20A |
Earth leakage switch | yes (1x) |
Generator input switch | with time delay |
Time delay generator input | 0-10 seconds (adjustable) |
OUTPUT | |
Nominal current shortbreak output | 6A + 6A + 6A |
Nominal current power output | 6A + 10A |
Automatic circuit breakers | Yes |
TECHNICAL SPECIFICATIONS | |
Power consumption (AC all inputs) | 7 VA |
Power consumption (only inverter power) | No (no load consumption) |
Temperature range (specified) | -5°C to +60°C |
Temperature range (allowed) | -40°C to +70°C (may not meet the specified tolerances) |
Temperature range (storage/non operating) | -60°C to +80°C |
Relative humidity | Maximum 95% (non condensing) |
Transfer time | Switch on 12...22ms/switch off 4...19ms |
MECHANICAL | |
Cable size | 0.5-10 mm²/AWG 20-7 |
Protection degree | IP55 |
